CarEQO RNS 510 Service Tool

CarEQO RNS 510 Tool is a specialized service tool for RNS 510 navigation systems.

Features:

• Reset  old (unknown) code and generate new (known) code
• Clear device serial number
• Alternatively generate random VIN
• Clear production date
• Change model designation (VW,Skoda,Seat)

Tool are connected betwen computer (USB port) and navig. unit (28-pin system connector) ,no need to open navigation unit !!!

Supported versions :

Skoda Columbus (Continetal)

Skoda Trinax

VW RNS510

Seat Media System (without SD slot)

1T0 035 680A
7L6 035 680A
1Z0 035 680A
5P0 035 680A
1T0 035 680B
7L6 035 680B
3T0 035 680
1T0 035 680B
3C0 035 680C
7L6 035 680B
1T0 035 680C
1T0 035 680C
7L6 035 680C
3T0 035 680A
7F0 035 680
7E0 035 680
3CD 035 680A (Made for China)

Really tested with software version (yet):

-0522
-0688
-0322
-0764  3T0 035 680 Skoda Columbus (HW: H02)
-0804  3T0 035 680A Skoda Columbus
-0900  1T0 051 680B RNS510 (HW: H03)
-0904  3T0 035 680 Skoda Columbus
-1000  1T0 035 680A VW  (HW 04)
-1004  1Z0 035 680A Skoda Columbus  (HW H:04)
-1024  1Z0 035 680A Skoda Auto MP3  (HW: H05)
-1020  1T0 035 680A VW (HW: H04)
-1020  1T0 035 680A VW (HW: H05)
-1036  5P0 035 680A SEAT (HW H05)
-1040  1T0 035 680C VW (HW: H08)
-1104  3T0 035 680  Skoda Columbus
-1164  3T0 035 680  Skoda Columbus (HW: H11)
-1020  1T0 035 680A  VW
-1304  3T0 035 680  Skoda Columbus
-2660
-2664  3T0 035 680A Skoda Columbus
-2680  1T0 035 680C VW (HW: H04)
-2684  3T0 035 680A Skoda Columbus
-2700
-2720  1T0 035 680C  VW (HW: H42)
-2720  1T0 035 680C  VW (HW: H41)
-2724  3T0 035 680A Skoda Columbus (HW: H06)
-2724  3T0 035 680A Skoda Columbus (HW: H41)
-2724  3T0 035 680A Skoda Columbus (HW: H42)
-2840  1T0 035 680C  VW (HW: H50)
-2844  3T0 035 680A  Skoda Columbus (HW: H52)
-3974  3T0 035 680C  Skoda Columbus (HW: H06)

-5218  OK

Warning !!!

Software versions 5230 and 5238 may cause disablement device, we do not use our temporary facility for the version!

Manual for use :

• English : http://www.carradio.sk/hardware/RNS510/RNS510Tool.pdf
• Video : http://www.youtube.com/watch?v=vO4xhwe6h0M&feature=player_embedded

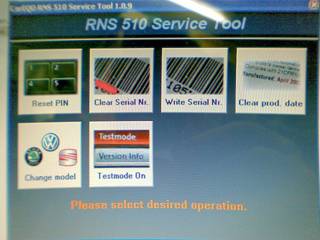

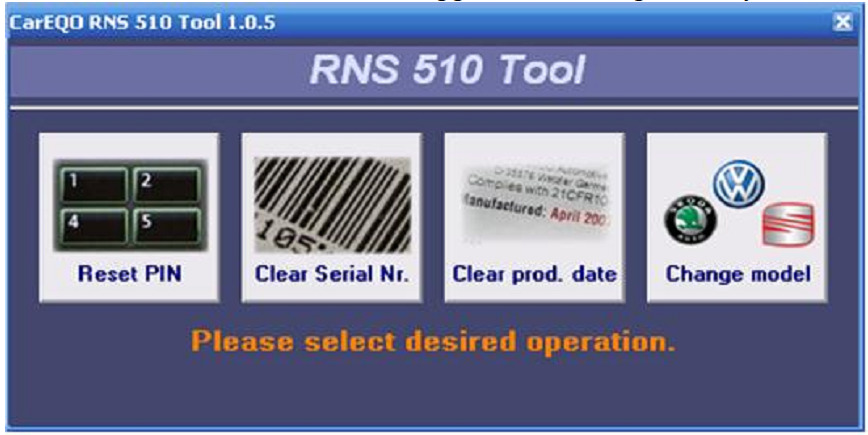

Screenshoot :

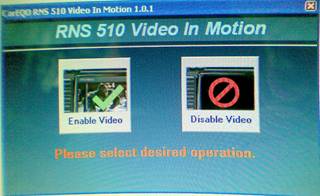

CarEQO RNS-510 VIDEO Tool

In this moment is already available new cable for unlocking TV/VIDEO in motion

Cable is connected to navigations  with same connector 28-pin

If you are intrested - CONTACT ME!
